F150

Newly designed look & integrated steering

Yamaha’s popular and proven range of F150 Digital and Mechanical Control outboards now feature a newly designed look and integrated steering, taking these engines to the next level when it comes to power, reliability and control.



Boat owners can now choose from Integrated Hydraulic Steering or Integrated Electro-Hydraulic Steering, with both systems housed in a neat, sealed cylinder unit, which is built into the transom bracket of the engine, rather than being a third-party bolt-on component. This results in a simple and clean rigging set-up, and an uncluttered bilge and transom area, while exposing less components to the elements for improved long-term durability and reliability.



The Integrated Electro-Hydraulic Steering models are fully compatible with Yamaha’s exclusive Helm Master EX Autopilot and Joystick system, a must have system for serious fishermen and skippers who demand ultimate boat control.

This new range of four-cylinder integrated steering models are ideal for all applications, including new boat packages, existing boat repowers and multi engine set-ups.

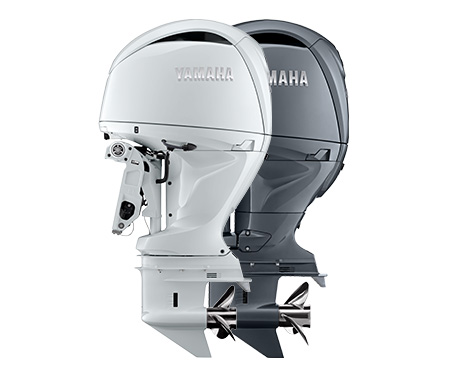

Available in signature Yamaha grey and pearlescent white, the modernised F150 outboards bring a new level of delight to boating.



MODELS F150SA F150CB F150C
Control System Digital Electronic Control (DEC) Digital Electronic Control (DEC) Mechanical Control
(MEC)
Steering System Integrated Electro-Hydraulic Steering (IEHS) Integrated Hydraulic Steering (IHS) Integrated Hydraulic Steering (IHS)
Colour Yamaha Grey or Pearlescent White  Yamaha Grey Yamaha Grey
Helm Master EX Autopilot/Joystick Compatible Yes - -
Counter Rotating Yes - Yes
Transom Height (Shaft Length) mm [inch] X: 642 [25.3] L: 516 [20.4] | X: 642 [25.3] L: 516 [20.4] | X: 642 [25.3]

Own It Sooner

We understand what it means to be customer friendly. Yamaha has been supplying innovative and exciting leisure products for nearly 50 years. We want to ensure that you get to enjoy our lifestyle products even sooner.

Technical Specification

Yamaha F150
Engine Type4-Stroke, 16 Valve DOHC Direct Action In-Line 4
Bore x Stroke (mm)F150SA & F150CB: 96.0 x 96.2 | F150C: 94.0 x 96.2
Fuel Tank Capacity (l)
Displacement (cc)F150SA & F150CB: 2785 | F150C: 2670
Recommended Maximum RPM5000-6000
Fuel ManagementEFI
IgnitionTCI
OEDA Emission Rating3
Lubrication SystemWet-sump
Alternator OutputF150SA & F150CB: 50A | F150C: 35A
Gear Ratio2.00 : 1 (Counter Rotating models: LF150XSA & LF150XC)
Starter SystemElectric
Operation MethodF150SA: DEC/IEHS | F150CB: DEC/IHS | F150C: MEC/IHS
Trim and Tilt MethodF150SA & F150CB: TotalTilt™ with Limiter | F150C: Tilt Limiter
Digital GaugesOptional
Command Link GaugesOptional
Transom Height (mm [inch])(L): 516 [20.4] (X): 642 [25.3]
Dry Weight (kg)F150XSA: 237 | F150LCB: 234 | F150XCB: 235 | F150LC: 231 | F150XC: 236
